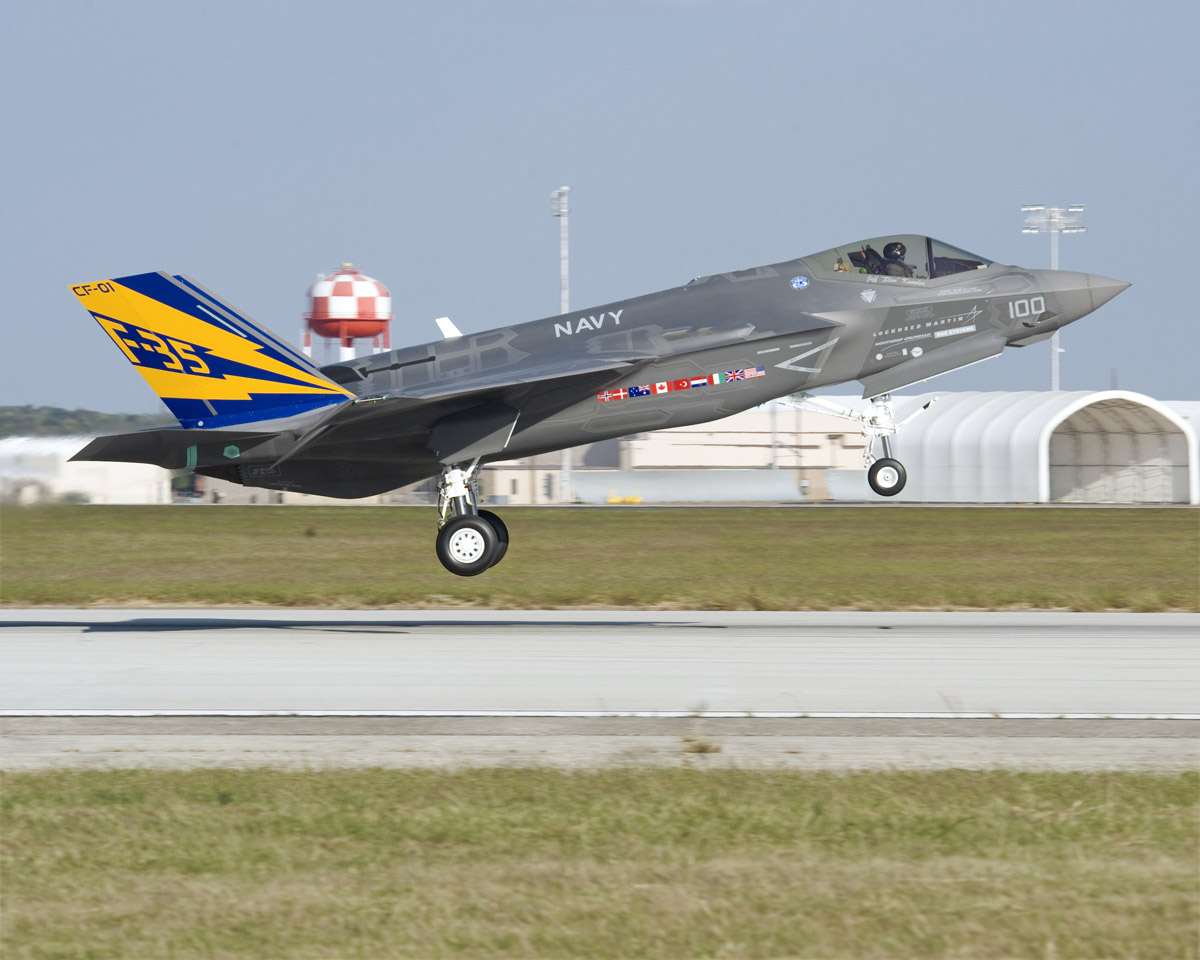

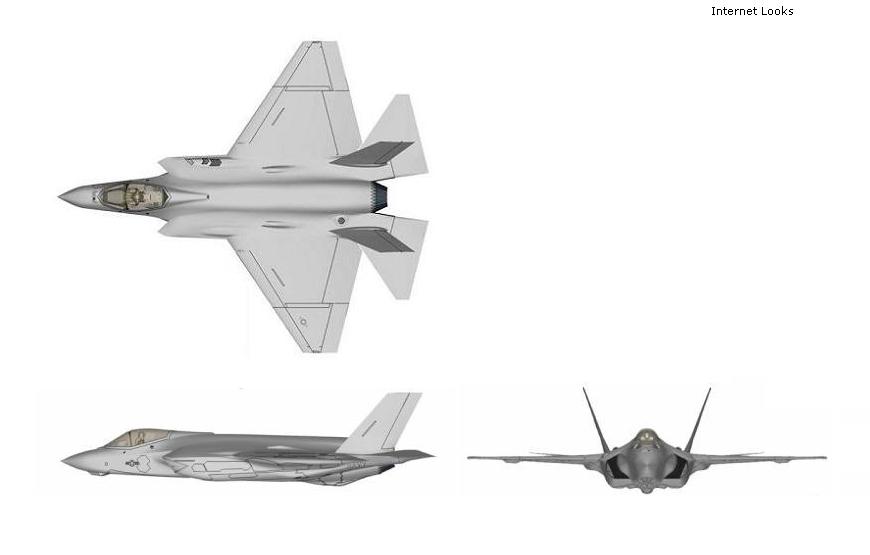

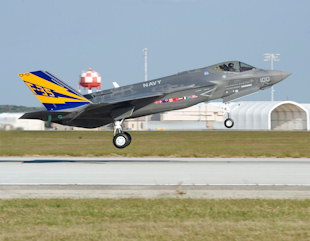

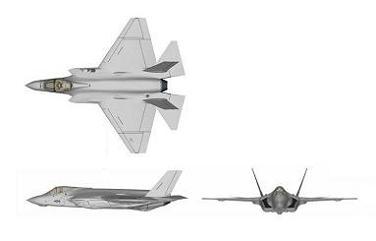

F-35C cf01100a F-35C 3-view

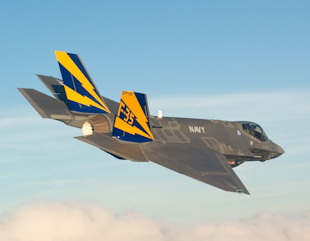

F-35C cf01100b F-35C cf0100c
  Manufacturer: Lockheed Martin
  Length: 51 ft, 6 in
  Empty weight: 34,800 lb
  Service ceiling (est.): 50,000 ft
  Operational range: 860 nm
  Engines: 1 Pratt&Whitney F135-PW-400
              or 1 GE/Rolls Royce F136-GE-400
  Radar: AN/APG-81 AESA
  Electro-optical targeting system (EOTS)
  Armament (typical fighter):
         GAU-12U 25 mm cannon (ext.)
         4 AIM-120 AMRAAM
         2 AIM-9 Sidewinder (ext.)
         or 4 AIM-9 Sidewinder
         or 4 AIM-132 ASRAAM
  F-35C single seat fighter, naval version
  Wing span: 43 ft, 0 in
  Operational weight: 49,900 lb
  Max. rate of climb (est.): 40,000 ft/min
  Maximum speed (with afterburner): Mach 1.80
  Ferry range: 1,600 nm
  Max. thrust (F135): 28,000 lb
  Stealth design impedes radar/thermal detection
  Armament (typical attack):
         Up to 18,000 lb ordnance
         GAU-12U 25 mm cannon (ext.)
         4 GBU-31 JDAM 2,000 lb bombs
         2 2,000 lb bombs (ext.)
         2 AIM-9 (ext.)
  Height: 14 ft, 8 in
  Max. gross weight: 70,000 lb
  Max. thr. (with afterburner): 43,000 lb
  Equipped for carrier operations
