J-20

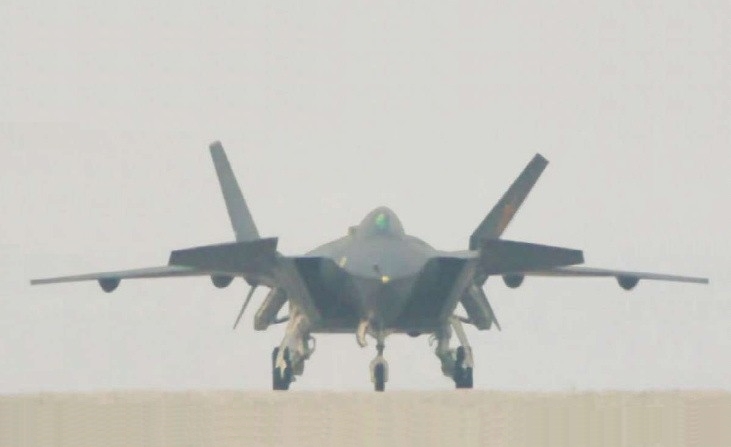

J-20 13a J-20 12 J-20 16a

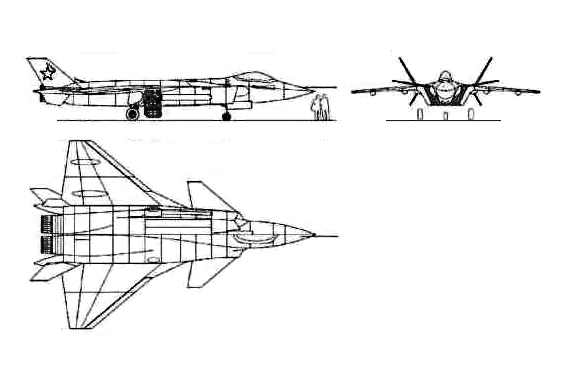

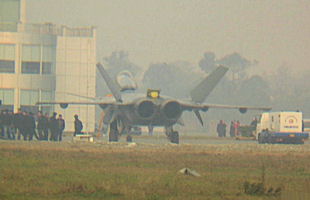

J-20 3-view J-20 14a J-20 r

  Manufacturer: Chengdu
  Length: 70 ft, 6 in
  Empty weight: 40,400 lb (est.)
  Service ceiling: 65,000 ft (est.)

  Operational range: 1,200+ mi (interceptor)
  Engines: 2 NPO Saturn 117S

  AESA Type 1475/KLJ5 radar

  Armament (typical fighter):
         23 mm cannon
         4 PL-12C air-to-air missiles (int.)
         2 PL-10 air-to-air missiles (ext.)
  J-20 single seat fighter (prototype)
  Wing span: 42 ft, 7 in

  Max. rate of climb: 50,000 ft/min (est.)
  Maximum speed (with afterburner): Mach 2.2

  Max. thrust: 19,400 lb (each eng.)








  Height: 14 ft, 2 in
  Max. gross weight: 80,000 lb (est.)
  Max. fuel weight: 34,000 lb (est.)

  Ferry range: 2,800 mi
  Max. thr. (afterburner): 31,966 lb (each eng.)



  Stealth design impedes radar/thermal detection
