Su-24

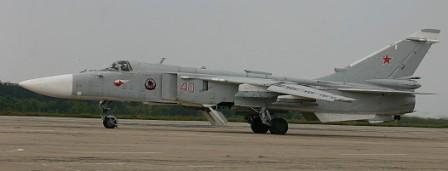

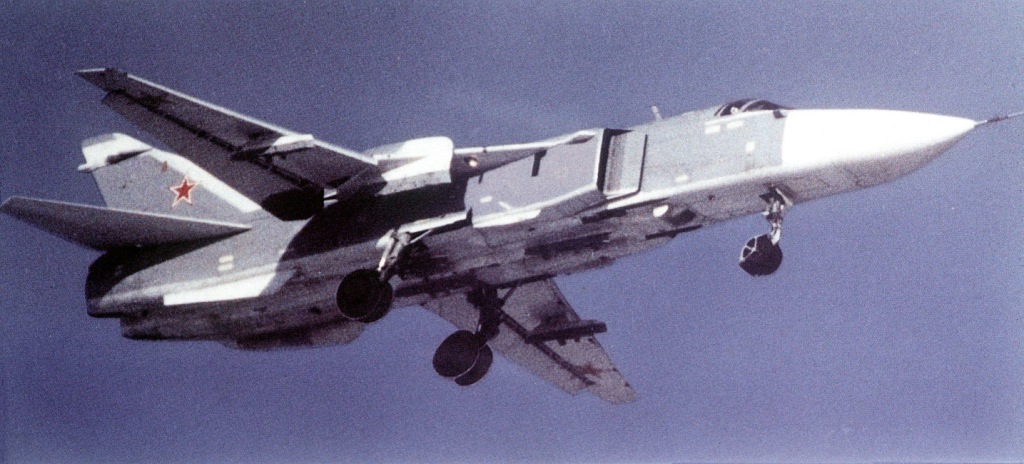

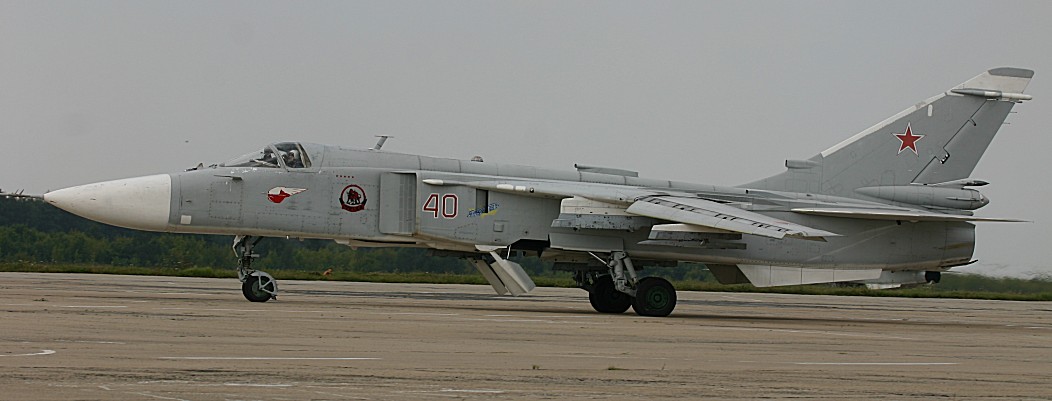

Su-24 gds Su-24 40

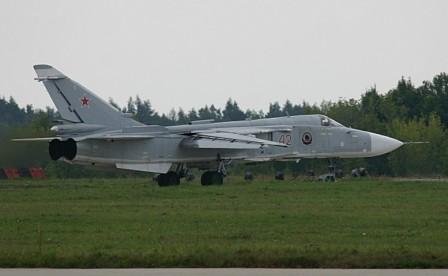

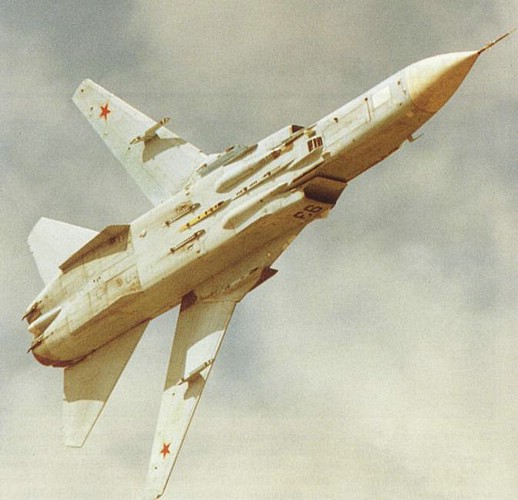

Su-24 42 Su-24 93

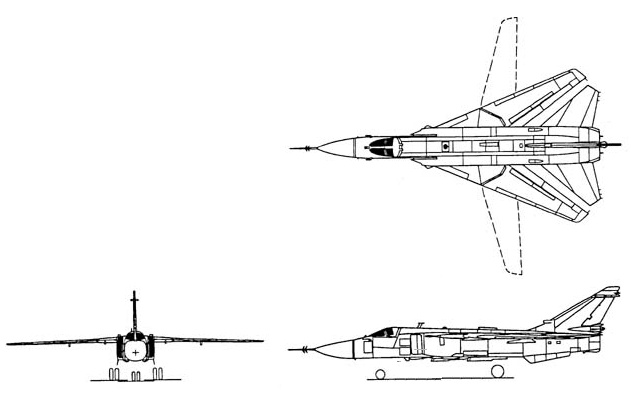

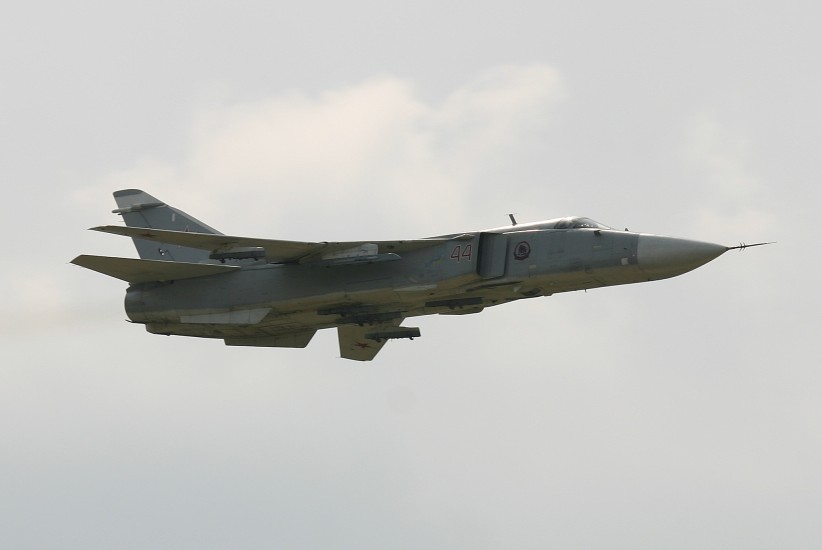

Su-24 44 Su-24 3-view
 photos: DOD
  Manufacturer: Sukhoi
  Length: 73 ft, 11 in

  Empty weight: 49,200 lb
  Service ceiling: 36,000 ft

  Operational range: 380 mi
  Engines: 2 Saturn/Lyulka AL-21F-3A

  Armament (typical):
     Up to 17,640 lb ordnance in 8 hard pts
     GSh-6-23 23 mm cannon
     2 R-60 air-to-air missiles
     4 Kh-23 RC missiles
     2 Kh-25 ML laser-guided missiles
     or 2 Kh-29L/T laser/TV guided msl
     or 2 TN-1000/TN-1200 nuclear bombs
     or 8 FAB-500 1,100 lb bombs
  Su-24 two-seat all-weather attack aircraft
  Wing span (extended): 57 ft, 10 in
  Wing span (max. sweep): 34 ft, 0 in
  Operational weight: 83,900 lb
  Max. rate of climb: 29,500 ft/min
  Max. speed (with afterburner): Mach 1.35 at 36,000 ft
  Ferry range: 1,725 mi
  Max. thrust (AL-21F-3A): 16,860 lb

  Radar: Orion-A attack, Relyef terrain
     Kaira-24 laser/TV designator (Su-24M)








  Height: 20 ft, 4 in

  Max. gross weight: 96,500 lb



  Max. thr. (with afterburner): 24,675 lb
